CH/CDH Header
CH

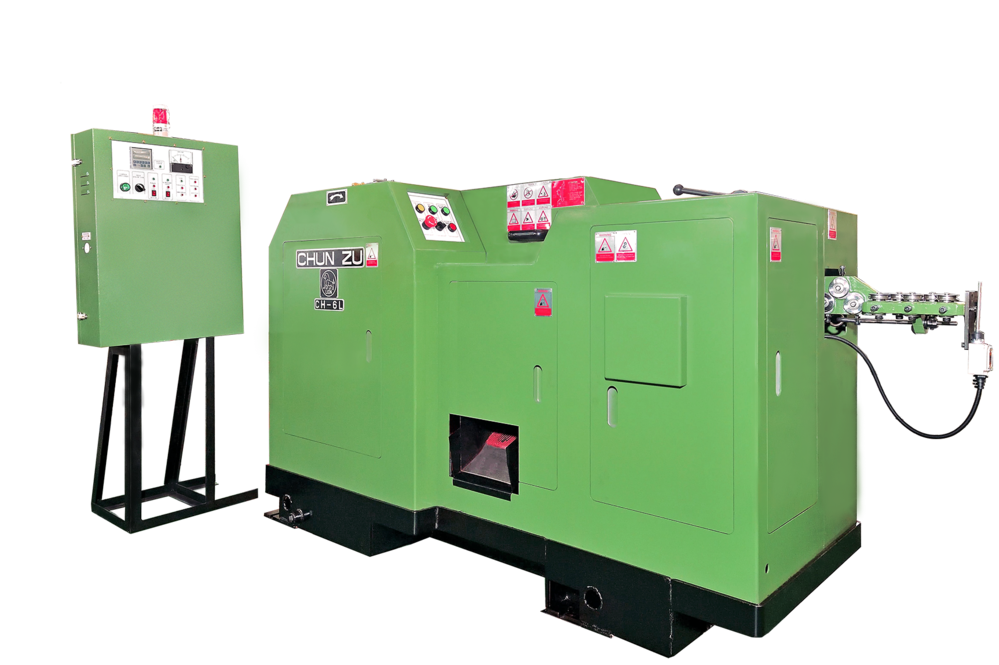

CH series can produce varied head type screws, like pan head, flat head, socket head, bugle head, truss head…etc. The products are with high concentricity.
1. Less noise in knock-out mechanism.
2. Safety pins are installed at knock-out and cut-off mechanisms to prevent any damage to the major machine parts.
3. Up and down punch sliding mechanism.
4. Easy knock-out adjusting mechanism.
2. Safety pins are installed at knock-out and cut-off mechanisms to prevent any damage to the major machine parts.
3. Up and down punch sliding mechanism.
4. Easy knock-out adjusting mechanism.
| ITEM | CH |
|
MACHINES |
1-DIE 2-BLOW HEADING MACHINES |
|
DIE |
1 |
|
BLOW |
2 |
|
MAX.FORGING LOAD (Ton) |
400 |
|
RAW MATERIAL FORM |
COIL WIRE |
|
CUT-OFF DIAMETER (mm) |
∅0.8-∅32 |
|
CUT-OFF LENGTH(mm) |
5-417 |
|
SHANK LENGTH OF BLANK(mm) |
3-305 |
|
GRIPPER TYPE |
SPRING TYPE |
|
PKO MECHANISM |
GENERAL TYPE PKO
SYNCHRONOUS TYPE PKO (OPTION) |
|
OTHERS |
--- |
※Modifications are
subject to change without notice.
 |
 |
 |
 |
|
Feeding mechanism and knock-out mechanism. |
The main slider with “OVERARM” design to secure the stability and high precision of machine. |
forming area | forming area |
