Technical highlights

technique

Technical highlights

1

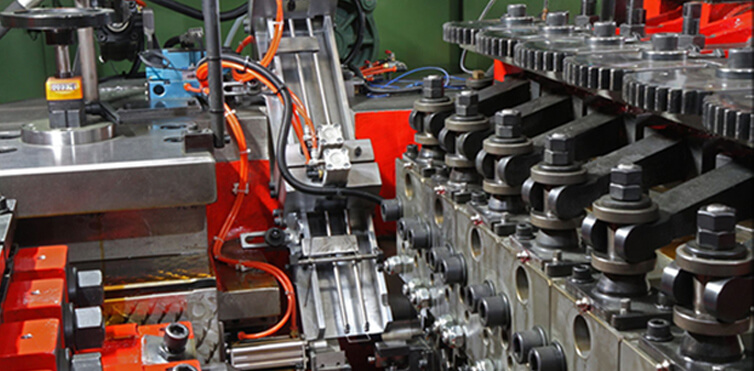

Slug feeding
Hollow steel or non-iron metal materials can be cut into slugs and placed from the cutting side, then transferred by the gripper mechanism for product production process.
2

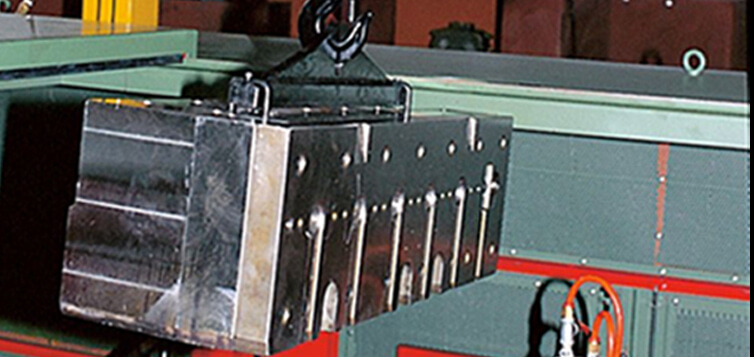

Quick tool change system
Punches and die block can use crane to manually lift or place inside the machine, and it can be used with NC/SNC interface for tooling life management.
3

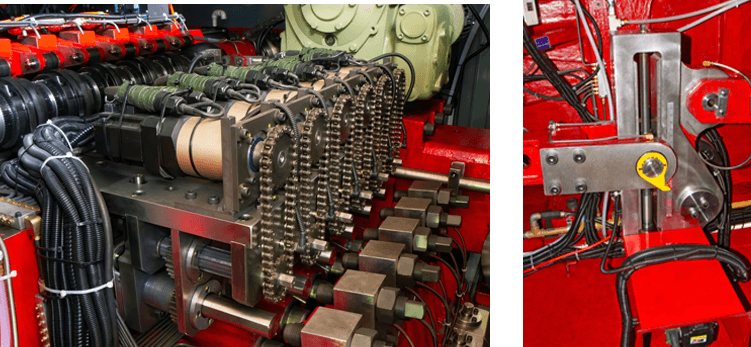

NC/ SNC Numeric control system
Setting below mechanism parameters through NC interface control system, the data can be stored and be re-import.
1. K.O.(Kick Out) adjustment、2. Feeding length adjustment、3. Stopper adjustment
4
Gripper empty parts detection
If the detector detects the gripper lost the blank, it will send out an alarm and stops the machine.
5

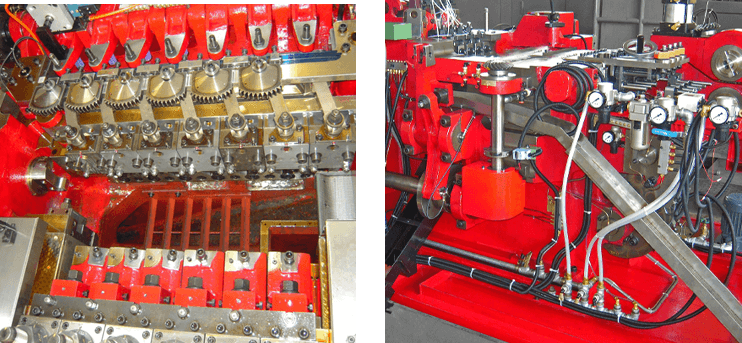

Parts Anti-damage system
Added extra set of gripper to the groove or conveyor belt, to decrease the height difference of the product falling, hence decrease the possibility of damaging the products.
6

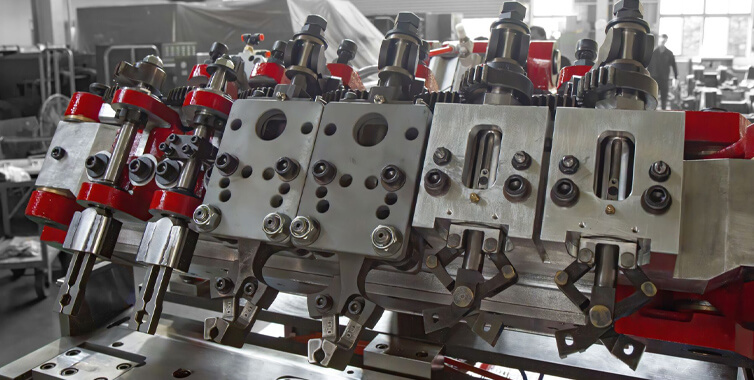

Combo type Gripper
This gripper is able to flip while opening and closing. It can be used with Bolt type and Nut type gripper mechanisms, suitable for special parts production.
7

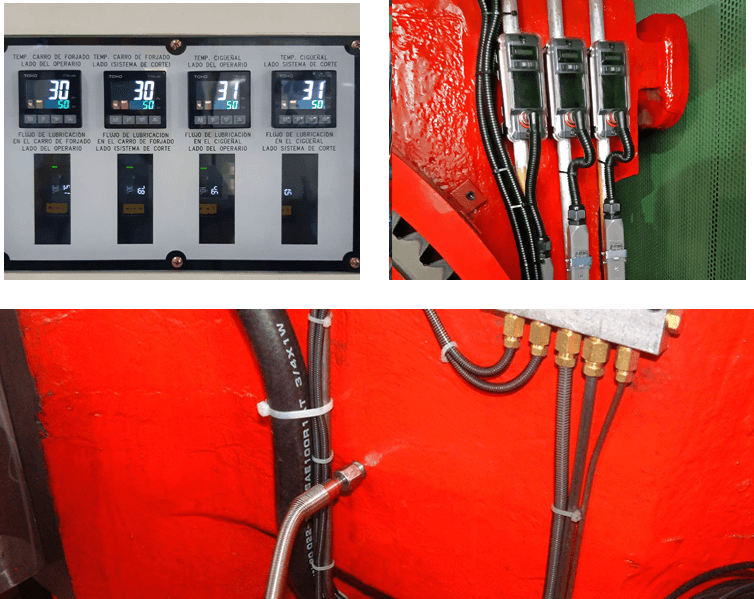

Temperature and Oil flow rate detection for Main Crank and Main Slider mechanisms
Monitoring the temperature and Lubrication oil flow rate of the Main Crank and Main Slider mechanisms, for the purpose of early warning.
