CDH
CDH

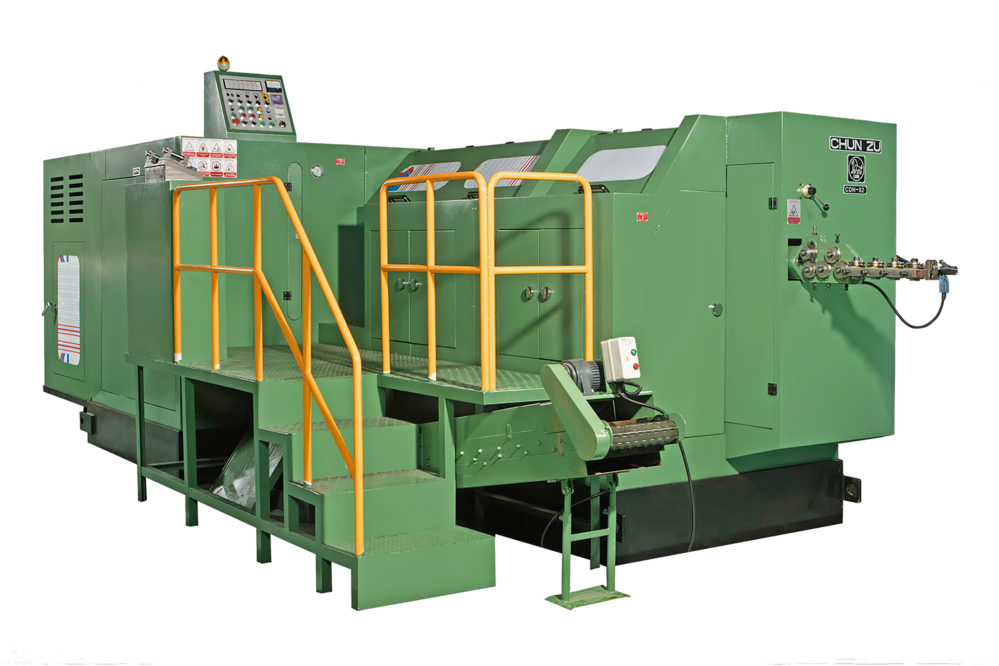

The CDH series is 2-Die 2-Blow heading machine, which is featured with better productivity and more diversified forming
1. Easier and simpler adjustment for the punch and kick out.
2. With synchronized PKO system.
3. Has one more die than CH series for more diversified forming.
4. With faster production speed and better productivity.
5. Transferred by gripper
2. With synchronized PKO system.
3. Has one more die than CH series for more diversified forming.
4. With faster production speed and better productivity.
5. Transferred by gripper
ITEM | CDH |
MACHINES |
2-DIE 2-BLOW HEADING MACHINES |
DIE |
2 |
BLOW |
2 |
MAX.FORGING LOAD (Ton) |
200 |
RAW MATERIAL FORM |
COIL WIRE |
CUT-OFF DIAMETER (mm) |
∅2-∅20 |
CUT-OFF LENGTH(mm) |
11-230 |
SHANK LENGTH OF BLANK(mm) |
10-204 |
GRIPPER TYPE |
INTEGRATED TRANSFER SYSTEM |
PKO MECHANISM |
SYNCHRONOUS TYPE PKO
|
※Modifications are subject to change without notice.
